P&ID. Piping, Tubing and Isometric Drawings

Automate P&ID Schematics to 3D Plant Design then to 2D ISO Drawing Creation.

Category: Siemens Solid Edge Course
Course Type: TBD
Duration: TBD
Location: Emixa Office, Client Site, Remote (Online)
User Level: Beginner to Intermediate

Who’s it for?

For users who want to automate P&ID schematics to 3D Plant design then to 2D ISO drawing creation.  Leveraging Intelligent and powerful standalone P&ID application for process engineers, Direct usage of P&ID definitions in the Piping add-on in Solid edge via a connected To-Do list and Automatic 2D isometric creation using attributes assumed from the Solid Edge 3D pipelines.

Course Agenda

Piping, Tubing and Isometric Drawings teaches the P&ID application. From Simulation to Creating & Editing a P&ID, after this 2 day course, you'll understand P&ID schematics, 3D Plant design & 2D ISO drawing creations.

• Intro Solid Edge Piping Solution
• Install Standard Parts
• Setup Standard Parts

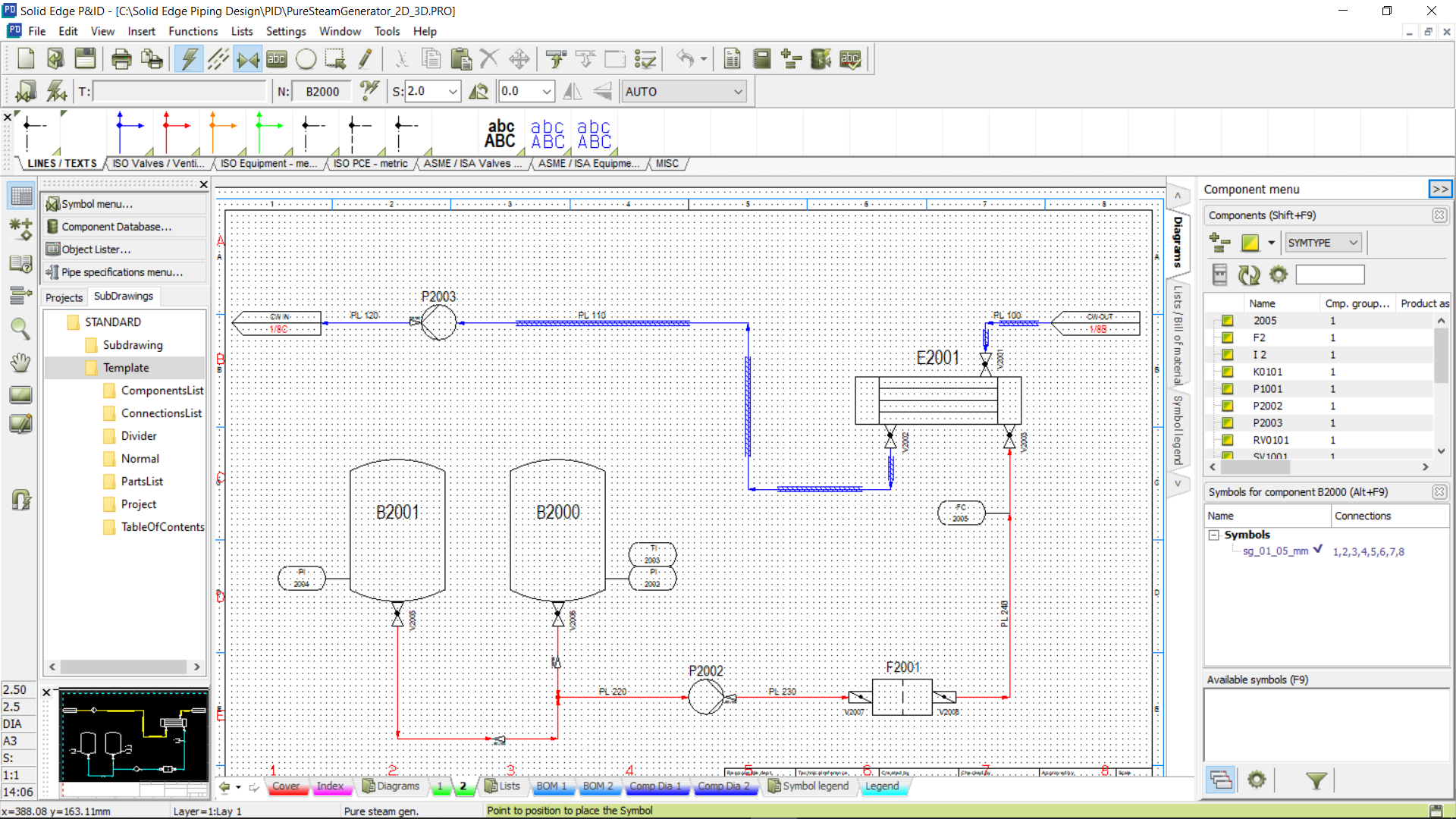

• Solid Edge P&ID Design Tools
• Working with Pipe Specs
• Create and Edit a P&ID
• Design Rule Checks
• Evaluation and Simulation
• Creating 3D pipe routes for P&ID
• Making Changes to 3D
• Updating piping
• Isometric Drawing Creation

Pre-requisites

Previous experience of Solid Edge Essentials level.
